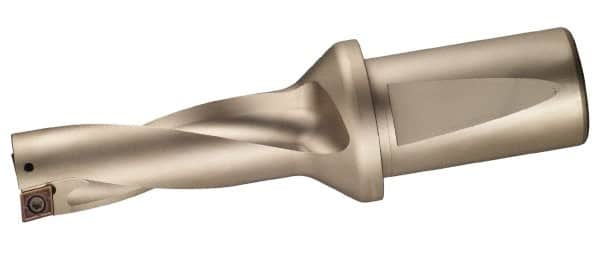

Sumitomo - 66mm Max Drill Depth, 3xD, 21mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Straight Shank
Item #: 53962270
Brand: Sumitomo
Model #: 2A00136
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (mm) | 21.00 |
| Drill Diameter (Decimal Inch) | 0.8268 |
| Maximum Drill Depth (mm) | 66.00 |
| Maximum Drill Depth (Decimal Inch) | 2.5984 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 137.00 |
| Overall Length/Projection (Decimal Inch) | 5.3937 |
| Insert Compatibility | WDXT 063006 |
| Flute Length (mm) | 66.00 |
| Flute Length (Decimal Inch) | 2.5984 |
| Body Length (Decimal Inch) | 3.1890 |
| Body Length (mm) | 81.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Collar Diameter (mm) | 33.00 |
| Collar Diameter (Decimal Inch) | 1.2992 |
| Series | SumiDrill |
