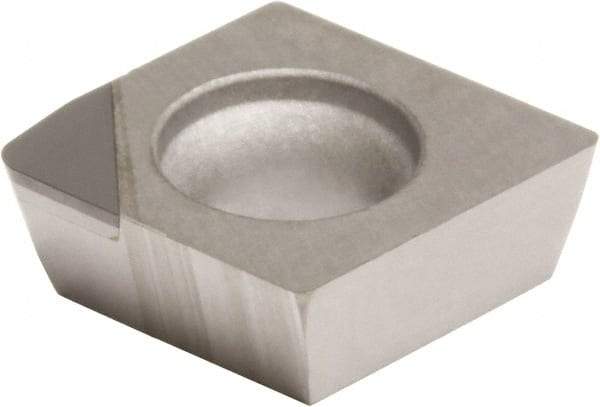

Sumitomo - CPEW32.52 Grade DA2200 Polycrystalline Diamond (PCD) Turning Insert - 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 53958435
Brand: Sumitomo
Model #: 16CDW48
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | CPEW |
| Insert Size | 32.52 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | DA2200 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Neutral |
| Rake Angle | 0 |
| Relief Angle | 11 |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
