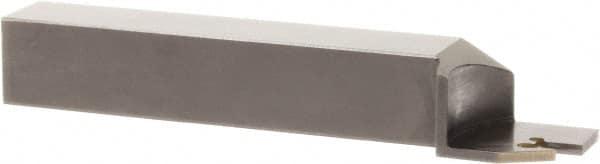

Sumitomo - STFS, Left Hand Cut, WCF.. Insert, Indexable Cutoff Toolholder - 1 Max Depth of Cut, 3/4" Shank Width, 3/4" Shank Height, 5" OAL
Item #: 53953196
Brand: Sumitomo
Model #: 2E00W0B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Series | Sumi-Grip Jr., SumiCutoff |
| Toolholder Style | STFS |
| Insert Compatibility | WCF.. |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Insert Holding Method | Clamp |
| Insert Width (Decimal Inch) | 0.1181 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Height to Shank Top (Decimal Inch) | 0.7500 |
| Blade Width (Decimal Inch) | 0.1200 |
| Complete Insert Compatibility | WCF.. 3.. |
