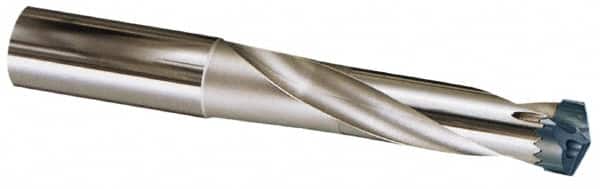

Sumitomo - 16.51 to 17.5mm Diam, 3xD, 62.5mm Max Depth, 20mm Shank Diam, 86.5mm Flute, 136.5mm OAL, Replaceable Tip Drill - SMDT Insert, SMDH Toolholder, Series SMD
Item #: 53945804
Brand: Sumitomo
Model #: 5L00004
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 16.51 |
| Minimum Drill Diameter (Decimal Inch) | 0.6500 |
| Maximum Drill Diameter (mm) | 17.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.6890 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.4606 |
| Maximum Drill Depth (mm) | 62.50 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | SMDT |
| Toolholder Style | SMDH |
| Through Coolant | Through Coolant |
| Flute Length (mm) | 86.50 |
| Flute Length (Decimal Inch) | 3.4055 |
| Body Length (mm) | 86.50 |
| Body Length (Decimal Inch) | 3.4055 |
| Overall Length (mm) | 136.50 |
| Overall Length (Decimal Inch) | 5.3740 |
| Toolholder Material | Steel |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
