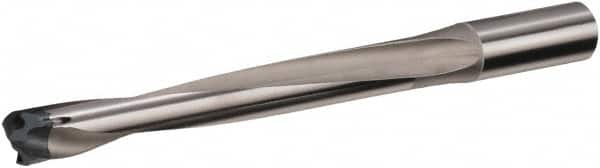

Sumitomo - 13.5 to 14.5mm Diam, 8xD, 124.5mm Max Depth, 16mm Shank Diam, 143.5mm Flute, 191.5mm OAL, Replaceable Tip Drill - SMDT Insert, SMDH Toolholder, Series SMD
Item #: 53945762
Brand: Sumitomo
Model #: 5L00035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 13.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.5315 |
| Maximum Drill Diameter (mm) | 14.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.5709 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 4.9016 |
| Maximum Drill Depth (mm) | 124.50 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | SMDT |
| Toolholder Style | SMDH |
| Through Coolant | Through Coolant |
| Flute Length (mm) | 143.50 |
| Flute Length (Decimal Inch) | 5.6496 |
| Body Length (mm) | 143.50 |
| Body Length (Decimal Inch) | 5.6496 |
| Overall Length (mm) | 191.50 |
| Overall Length (Decimal Inch) | 7.5394 |
| Toolholder Material | Steel |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
