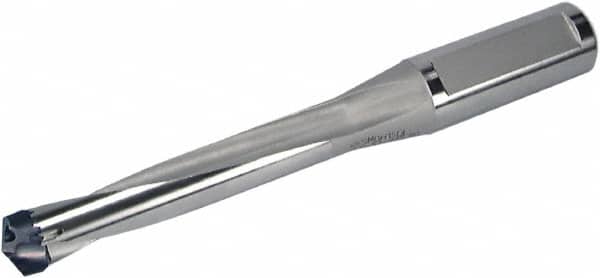

Sumitomo - 26.81 to 27.8mm Diam, 5xD, 151mm Max Depth, 32mm Shank Diam, 175mm Flute, 235mm OAL, Replaceable Tip Drill - SMDT Insert, SMDH Toolholder, Series SMD
Item #: 53945523
Brand: Sumitomo
Model #: 5L00031
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 26.81 |
| Minimum Drill Diameter (Decimal Inch) | 1.0555 |
| Maximum Drill Diameter (mm) | 27.80 |
| Maximum Drill Diameter (Decimal Inch) | 1.0945 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.9449 |
| Maximum Drill Depth (mm) | 151.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | SMDT |
| Toolholder Style | SMDH |
| Through Coolant | Through Coolant |
| Flute Length (mm) | 175.00 |
| Flute Length (Decimal Inch) | 6.8898 |
| Body Length (mm) | 175.00 |
| Body Length (Decimal Inch) | 6.8898 |
| Overall Length (mm) | 235.00 |
| Overall Length (Decimal Inch) | 9.2520 |
| Toolholder Material | Steel |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
