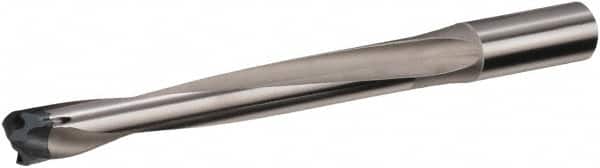

Sumitomo - 26.81 to 27.8mm Diam, 8xD, 234mm Max Depth, 32mm Shank Diam, 260mm Flute, 320mm OAL, Replaceable Tip Drill - SMDT Insert, SMDH Toolholder, Series SMD
Item #: 53945366
Brand: Sumitomo
Model #: 5L00048
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 26.81 |
| Minimum Drill Diameter (Decimal Inch) | 1.0555 |
| Maximum Drill Diameter (mm) | 27.80 |
| Maximum Drill Diameter (Decimal Inch) | 1.0945 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 9.2126 |
| Maximum Drill Depth (mm) | 234.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | SMDT |
| Toolholder Style | SMDH |
| Through Coolant | Through Coolant |
| Flute Length (mm) | 260.00 |
| Flute Length (Decimal Inch) | 10.2362 |
| Body Length (mm) | 260.00 |
| Body Length (Decimal Inch) | 10.2362 |
| Overall Length (mm) | 320.00 |
| Overall Length (Decimal Inch) | 12.5984 |
| Toolholder Material | Steel |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
