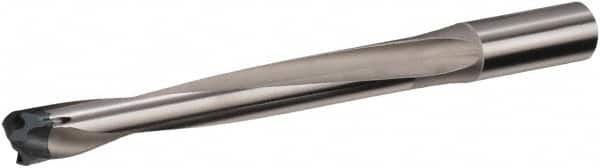

Sumitomo - 28.81 to 29.8mm Diam, 8xD, 251mm Max Depth, 32mm Shank Diam, 275mm Flute, 335mm OAL, Replaceable Tip Drill - SMDT Insert, SMDH Toolholder, Series SMD
Item #: 53945358
Brand: Sumitomo
Model #: 5L00050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 28.81 |
| Minimum Drill Diameter (Decimal Inch) | 1.1343 |
| Maximum Drill Diameter (mm) | 29.80 |
| Maximum Drill Diameter (Decimal Inch) | 1.1732 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 9.8819 |
| Maximum Drill Depth (mm) | 251.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | SMDT |
| Toolholder Style | SMDH |
| Through Coolant | Through Coolant |
| Flute Length (mm) | 275.00 |
| Flute Length (Decimal Inch) | 10.8268 |
| Body Length (mm) | 275.00 |
| Body Length (Decimal Inch) | 10.8268 |
| Overall Length (mm) | 335.00 |
| Overall Length (Decimal Inch) | 13.1890 |
| Toolholder Material | Steel |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
