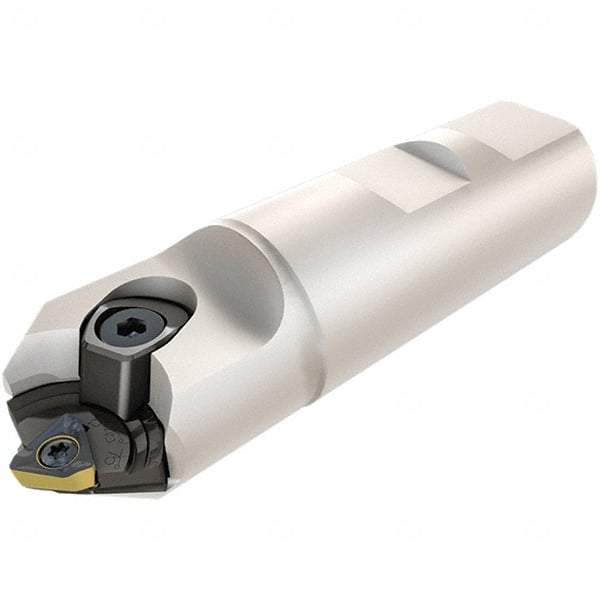

Iscar - Multimaster 0.984" Stepped Shank Milling Tip Insert Holder & Shank - 0.941" Neck Diam, T15 Neck Thread, 5.315" OAL, Steel MM S-A Tool Holder
Item #: 53905543
Brand: Iscar
Model #: 3106911
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | Stepped Shank |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Neck Diameter (Decimal Inch) | 0.9410 |
| Neck Thread Size | T15 |
| Toolholder Material | Steel |
| Overall Length (Decimal Inch) | 5.3150 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 1.2990 |
| Effective Length (Decimal Inch) | 1.3780 |
| Milling Tip Style | MM EA; MM EB; MM EBA; MM EC-8/MM EC-10; MM EC-CF; MM EC-H; MM ECF; MM EFF; MM EFS; MM EFS-CF; MM ERA; MM ERS; MM TS-DG |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
