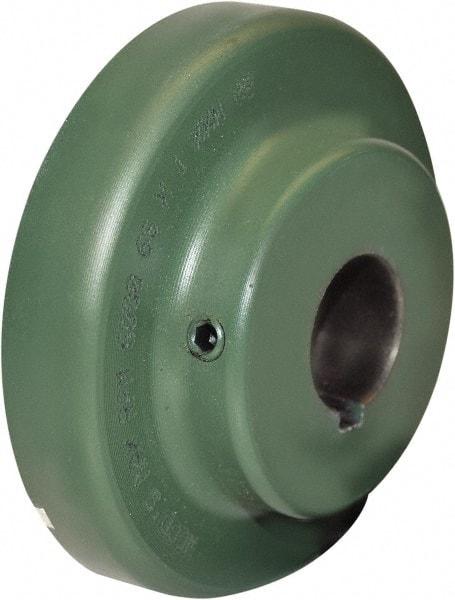

TB Wood's - 7/8" Max Bore Diam, 3/16" x 3/32" Keyway Width x Depth, 5-7/16" Hub, 8 Flexible Coupling Flange - 5-7/16" OD, 2-3/32" OAL, Cast Iron, Type S
Item #: 53902185
Brand: TB Wood's
Model #: 8S78
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Flange |
| Bore Diameter (Decimal Inch) | 0.8750 |
| Maximum Bore Diameter (Inch) | 7/8 |
| Outside Diameter (Decimal Inch) | 5.4500 |
| Outside Diameter (Inch) | 5-7/16 |
| Overall Length (Inch) | 2-3/32 |
| Overall Length (Decimal Inch) | 2.0938 |
| Material | Cast Iron |
| Special Item Information | Type S |
| Coupling Size | 8 |
| PSC Code | 5340 |
