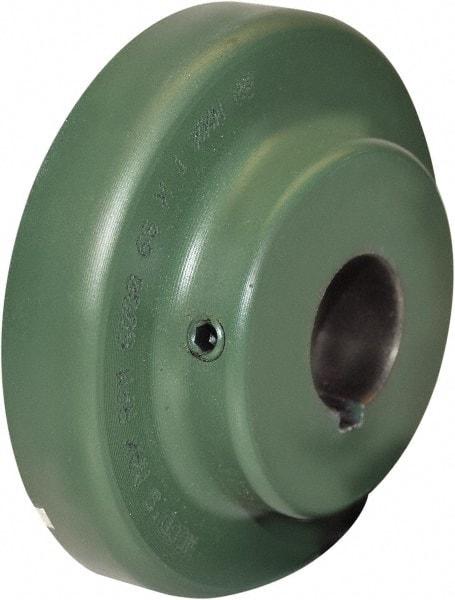

TB Wood's - 2" Max Bore Diam, 1/2" x 1/4" Keyway Width x Depth, 6-3/8" Hub, 9 Flexible Coupling Flange - 6-3/8" OD, 2-13/32" OAL, Cast Iron, Type S
Item #: 53901963
Brand: TB Wood's
Model #: 9S2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Flange |
| Bore Diameter (Decimal Inch) | 2.0000 |
| Maximum Bore Diameter (Inch) | 2 |
| Outside Diameter (Decimal Inch) | 6.3500 |
| Outside Diameter (Inch) | 6-3/8 |
| Overall Length (Inch) | 2-13/32 |
| Overall Length (Decimal Inch) | 2.4063 |
| Material | Cast Iron |
| Special Item Information | Type S |
| Coupling Size | 9 |
| PSC Code | 5340 |
