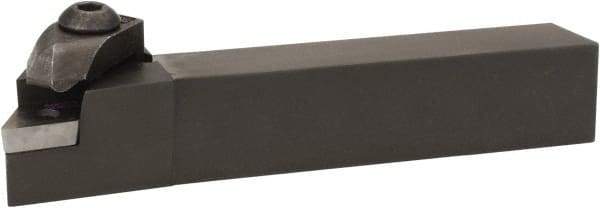

Hertel - IPL.13.., -5° Lead Angle IKLN External Left Hand Indexable Profiling Toolholder - 3/4" Shank Height x 3/4" Shank Width, 4-1/2" Long, Steel
Item #: 53830303
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Rake | Negative |
| Insert Compatibility | IPL.13.. |
| Toolholder Style | IKLN |
| Series | HertelNotch |
| Toolholder Material | Steel |
| Through Coolant | No |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Holding Method | Clamp |
| Lead Angle | -5 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Back of Bar to Cutting Edge (mm) | 1.00 |
| Head Length (Decimal Inch) | 1.2500 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
