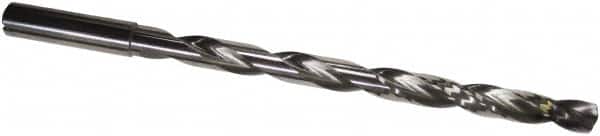

Extra Length Drill Bit: 0.6102″ Dia, 140 °, Solid Carbide FIREX Finish, Spiral Flute, Straight-Cylindrical Shank, Series 5525
Item #: 53736591
Brand: Guhring
Model #: 9055250155000
Product Specifications
| Drill Bit Size (mm) | 15.50 |
| Overall Length (mm) | 260.00 |
| Flute Length (mm) | 208.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | FIREX |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | 5525 |
| Point Type | RT100 U |
| Cutting Direction | Right Hand |
| Tool Application | Facet Point Grinding; Self-Centering |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | h7 |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Aluminum; Titanium Alloy |
| Secondary Workpiece Material Code | S; H; M; N |
| Standards | California PROP 65; DIN 6537 |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.6102 |
| Shank Diameter (mm) | 16.00 |
| Shank Length (mm) | 48.00 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 7.2740 |
| Maximum Drilling Depth (mm) | 184.75 |
