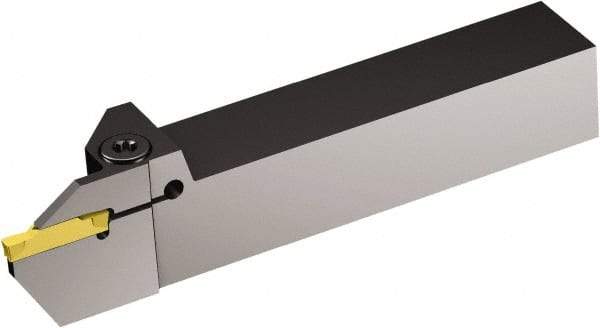

Sandvik Coromant - R/LF123..B, Internal or External, Right Hand, 32mm Max Depth of Cut, Indexable Grooving Tool Holder - N123M1-1100-0008-GM Insert Compatibility, 38.1mm Shank Height, 38.1mm Shank Width, 254mm OAL
Item #: 53671822
Brand: Sandvik Coromant
Model #: 5740945
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 32.00 |
| Overall Length (mm) | 254.00 |
| Overall Length (Decimal Inch) | 10.0000 |
| Toolholder Style | R/LF123..B |
| Insert Compatibility | N123M1-1100-0008-GM |
| Shank Height (mm) | 38.10 |
| Shank Height (Decimal Inch) | 1.5000 |
| Shank Width/Diameter (mm) | 38.10 |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Series | CoroCut 1-2 |
| Through Coolant | NonThrough Coolant |
| Insert Seat Size | M |
| Maximum Hole Depth (Decimal Inch) | 2.5158 |
| Maximum Bore Depth (Decimal Inch) | 2.5158 |
| igrvh Maximum Bore Depth (mm) | 63.90 |
| Back of Bar to Cutting Edge (mm) | 254.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 10.0000 |
| Center to Cutting Edge (mm) | 40.20 |
| Center to Cutting Edge (Decimal Inch) | 1.5827 |
| Head Length (mm) | 63.90 |
| Head Length (Decimal Inch) | 2.5158 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | N123M1-1100-0008-GM |
