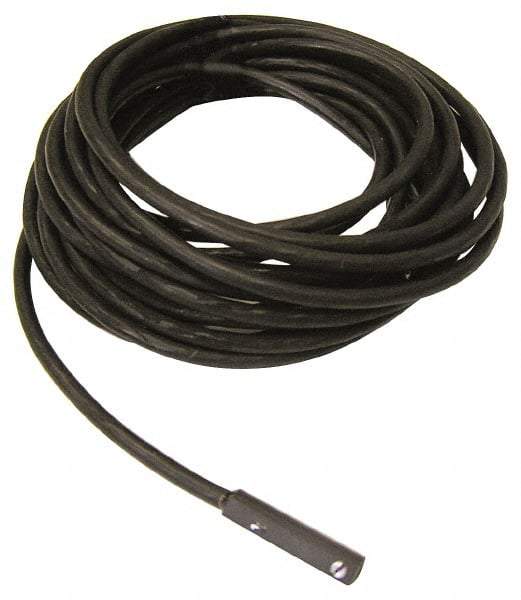

De-Sta-Co - NPN Output, Normally Open, Solid State Sensor, 0.1 Max Amps, 4.50 to 28 Volts, Power Clamp Switch - 0.5 Volt Max Drop, DC Current, 0.93" Long x 0.53" Wide x 0.87" High, 0.54 Ft Long Wire
Item #: 53646766
Brand: De-Sta-Co
Model #: 810174
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Output Type | NPN |
| Contact Type | Normally Open |
| Sensor Style | Solid State |
| Maximum Amperage | 0.10 |
| Maximum Amperage (mA) | 100.00 |
| Maximum Watts | 100.00 |
| Voltage | 4.50 to 28 |
| Maximum Voltage Drop | 0.50 |
| Current Type | DC |
| Overall Length (Decimal Inch) | 0.9300 |
| Overall Width (Decimal Inch) | 0.5300 |
| Overall Height (Decimal Inch) | 0.8700 |
| Wire Length (mm) | 165.10 |
| Wire Length (Decimal Inch) | 6.5000 |
| Wire Length (Feet) | 0.54 |
| Product Compatibility | Pneumatic Power Clamps w/ an -MR option |
