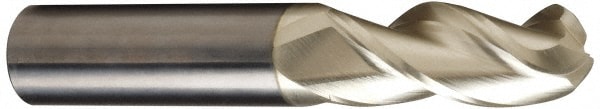

Ball End Mill: 3/8" Dia, 1-1/2" LOC, 3 Flute, Solid Carbide
Item #: 03288172
Brand: Accupro
Model #: 315259
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1-1/2 |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 4 |
| Shank Diameter (Inch) | 3/8 |
| Extended Reach | No |
| Variable Helix | No |
| Helix Angle | 37 |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| Length Of Cut Range (Decimal Inch) | 1.5000 |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Shank Diameter Tolerance | +0.0001/-0.0004 in |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5000 |
