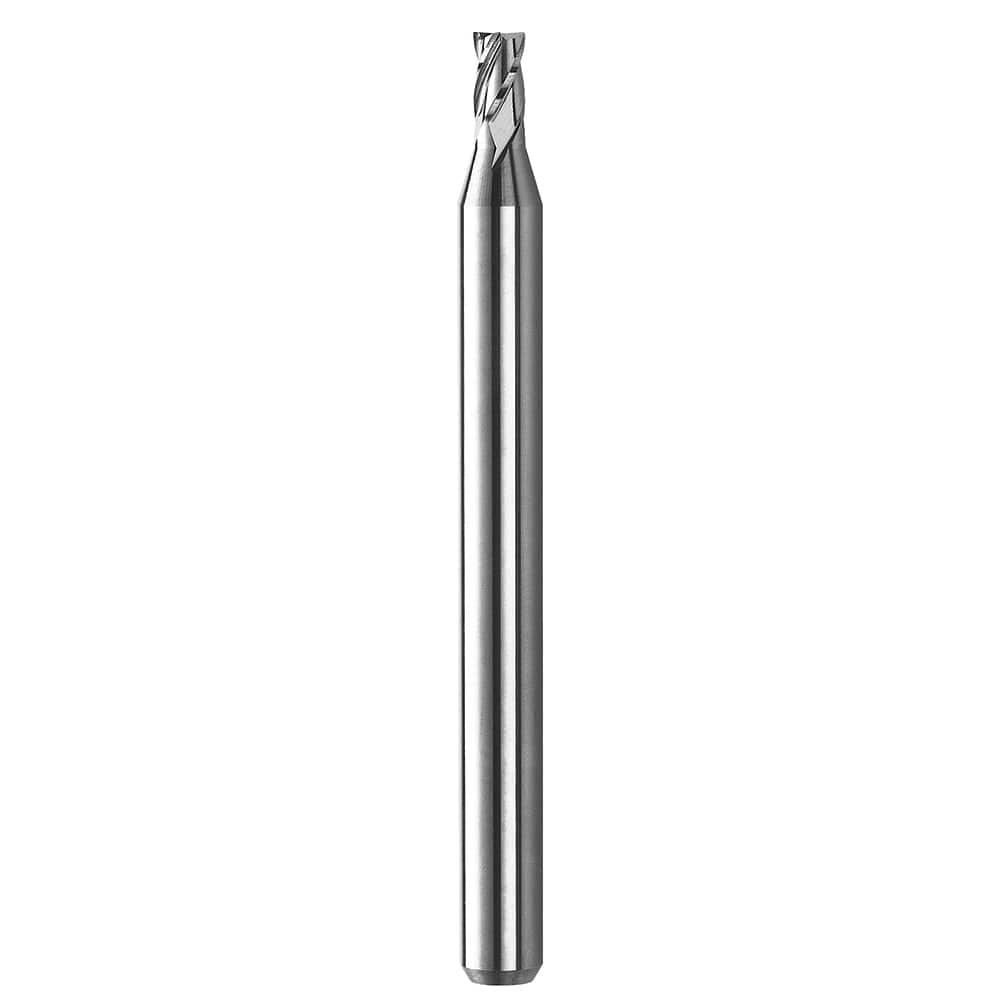

SGS - Square End Mills; Mill Diameter (Decimal Inch): 0.1000 ; Number of Flutes: 4 ; Length of Cut (Inch): 0.5 ; Length of Cut (Decimal Inch): 0.5000 ; Material: Solid Carbide ; Finish/Coating: Uncoated
Item #: 53535480
Brand: SGS
Model #: 00607
Product Specifications
Square End Mills; Mill Diameter (Decimal Inch): 0.1000 ; Number of Flutes: 4 ; Length of Cut (Inch): 0.5 ; Length of Cut (Decimal Inch): 0.5000 ; Material: Solid Carbide ; Finish/Coating: Uncoated
| Mill Diameter (Decimal Inch) | 0.1000 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 0.5 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Single or Double End | Single |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.50000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Flute Type | Spiral |
| Length Type | Extended |
| Mill Diameter Tolerance (mm) | +0.0000/+0.0254 |
| Mill Diameter Tolerance (Decimal Inch) | +0.000 to -0.001 |
| Material Grade | Micrograin |
| Minimum Helix Angle | 30 |
| Chipbreaker | No |
| Overall Length Tolerance (Decimal Inch) | +0.062/-0.062 |
| PSC Code | 3455 |
| Shank Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Series/List | M4SL |
