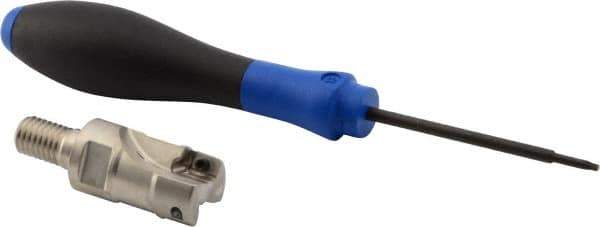

Seco - 3/4" Cut Diam, 0.354" Max Depth of Cut, 1.378" OAL, Indexable Square Shoulder End Mill - XOEX, XOMX Inserts, M10 Modular Connection, 90° Lead Angle, Through Coolant, Series Turbo 10
Item #: 53425013
Brand: Seco
Model #: 68444
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Modular Connection |
| Modular Connection Size | M10 |
| Overall Length/Projection (Decimal Inch) | 1.3780 |
| Lead Angle | 90 |
| Series | Turbo 10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.69-10 |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 1.3780 |
| Weldon Flat | No |
| Insert Compatibility | XOEX; XOMX |
| Maximum RPM | 26300 |
| Toolholder Material | Steel |
