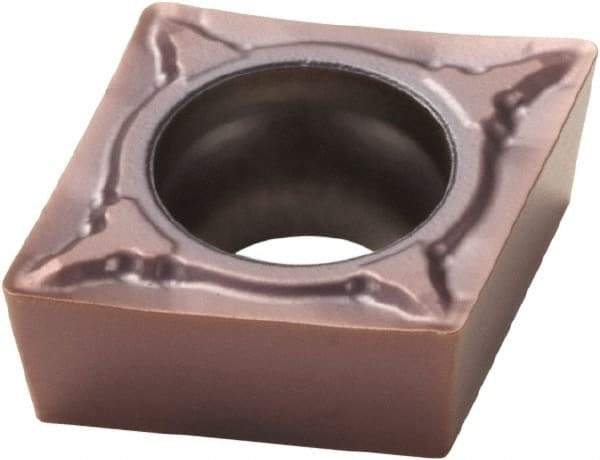

Seco - CCMT21.52 F1 Grade TP1030 Cermet Turning Insert - TiAlSiN Finish, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 53381364
Brand: Seco
Model #: 68475
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 21.52 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | TP1030 |
| Coating | TiAlSiN |
| Chip Breaker | F1 |
| Hole Diameter (Decimal Inch) | 0.1140 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1200 |
| Insert Holding Method | Screw |
| Shape | Diamond |
