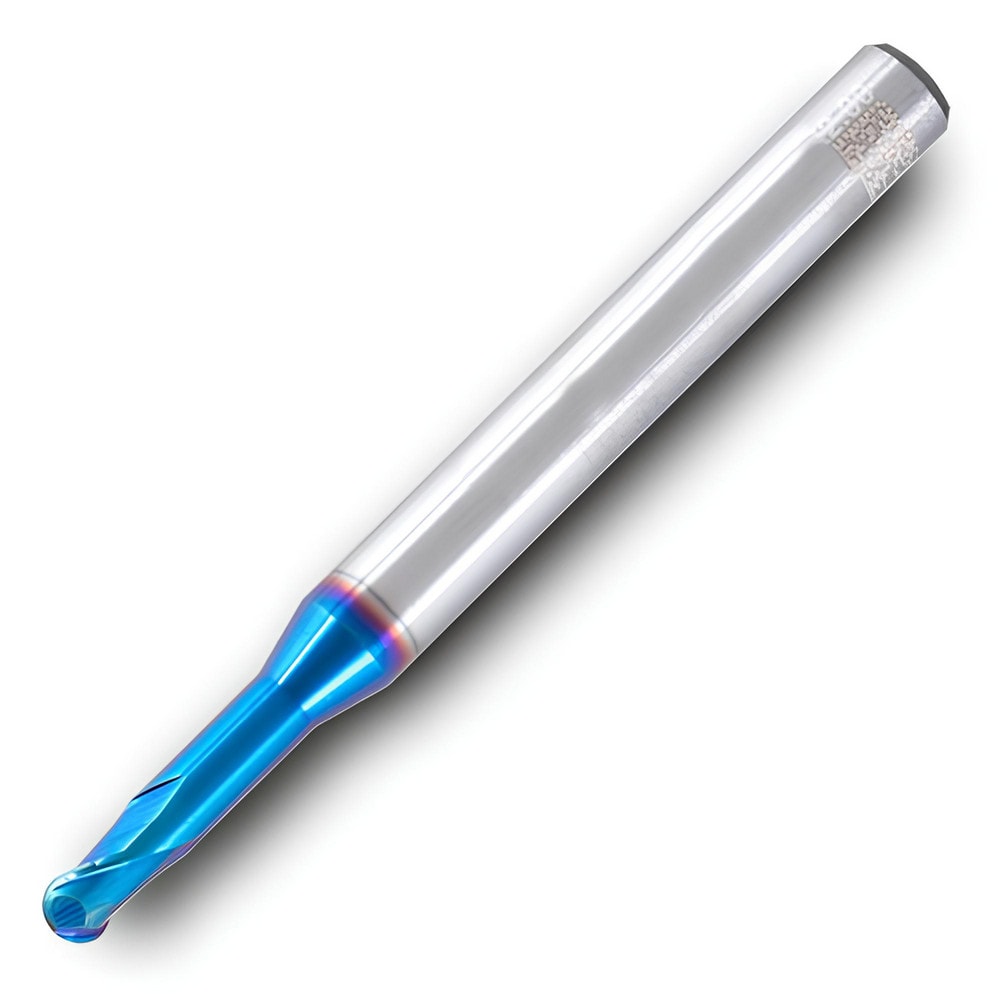

Brand: Ingersoll Cutting Tools / Part #: 5669038
Item #: 94097193
Brand: Ingersoll Cutting Tools
Model #: 5669038
Product Specifications
| Mill Diameter (mm) | 1.00 |
| Length of Cut (mm) | 0.8000 |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiCrSiN |
| Chipbreaker | No |
| Number Of Flutes | 2 |
| End Type | Single |
| Extended Reach | Yes |
| Undercutting | No |
| Length Type | Extra Long |
| Helix Style | Medium |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Neck Diameter (mm) | 0.950 |
| Nose Radius (mm) | 0.50 |
| Neck Length (mm) | 2.20 |
| Reach Length (mm) | 3.00 |
| Overall Length (mm) | 45.0000 |
| Maximum Helix Angle | 30 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Super Alloys & Titanium |
| Secondary Workpiece Material Code | S; H; N |
| Material Grade | IN2203 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 45BRB |
| Flute Type | Medium |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0315 |
