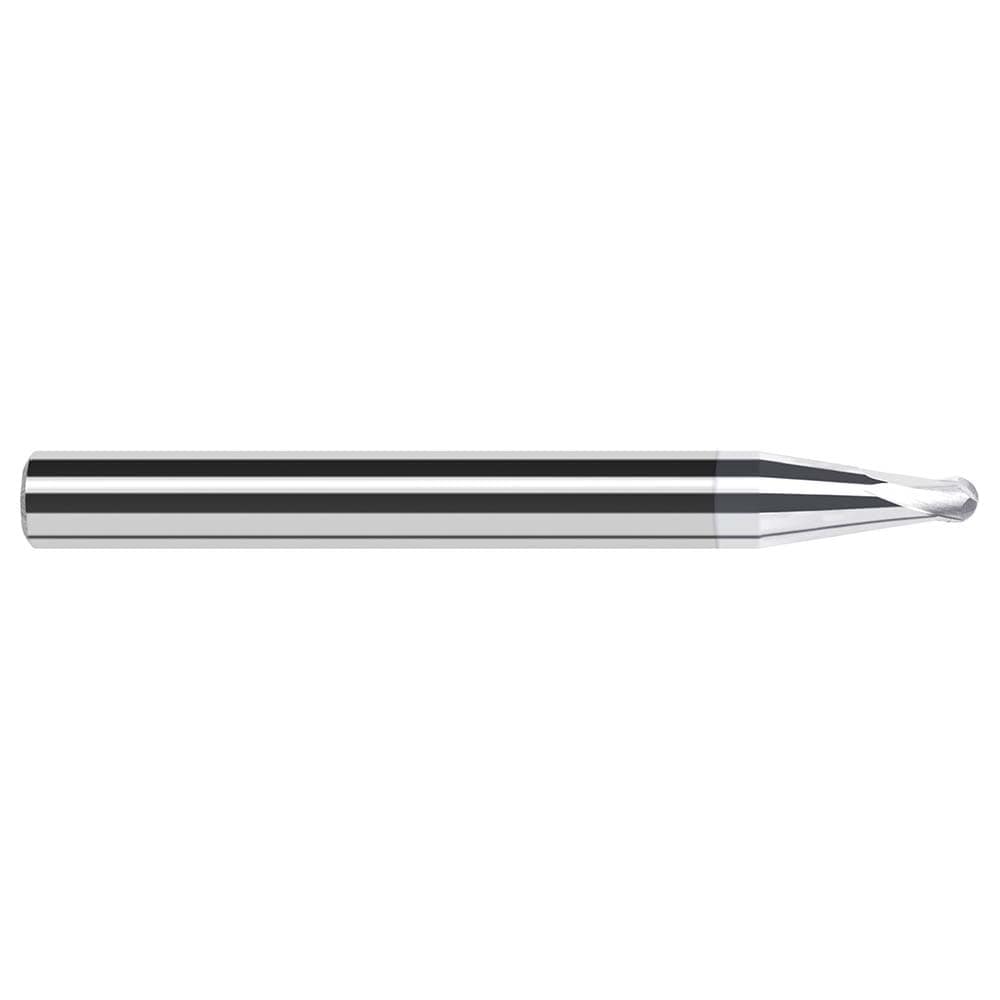

Ball End Mill: 1/8" Dia, 0.1000" LOC, 2 Flute, Solid Carbide
Item #: 51666477
Brand: Harvey Tool
Model #: 995642-C8
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiB2 |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1/4 |
| Extended Reach | Yes |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 45 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.1000 - 0.2000 |
| Length Type | Stub |
| Helix Style | High |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Nose Radius (Decimal Inch) | 0.0625 |
| Neck Length (Decimal Inch) | 0.5090 |
| Reach Length (Inch) | 39/64 |
| Reach Length (Decimal Inch) | 0.6090 |
| Mill Diameter Tolerance | +0.0000/-0.0010 in |
| Shank Diameter Tolerance | h6 |
| Maximum Helix Angle | 45 |
| Minimum Helix Angle | 45 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | High Helix End Mills for Aluminum Alloys - Ball - Tapered Reach (Mold Cutters), Material Specific End Mills |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1000 |
| Manufacturers Catalog Number | 995642-C8 |
| System Of Measurement | Fractional Inch |
