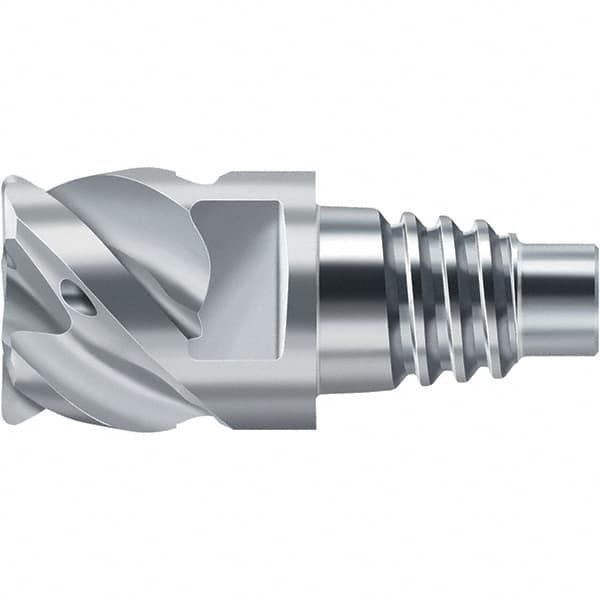

Walter-Prototyp - H2EC Carbide End Milling Tip Insert - TiAlN/TiAl Finish, 4 Flutes, 20mm Cutting Diam, 12mm Depth of Cut, 21.3mm Extension, 0.1575" Cnr Rad
Item #: 53084174
Brand: Walter-Prototyp
Model #: 6335204
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) Titanium Aluminum (TiAl) blends have a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | ConeFit; Protomax Inox |
| Milling Tip Style | H2EC |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Material Grade | A1007 |
| Depth of Cut (mm) | 12.00 |
| Depth of Cut (Decimal Inch) | 0.4724 |
| Number of Flutes | 4 |
| Coating | TiAlN/TiAl |
| Milling Tip Full Description | Corner Radius End Mill |
| Corner Radius (Decimal Inch) | 0.1575 |
| Coating Process | PVD |
| Extension From Holder (mm) | 21.30 |
| Extension From Holder (Decimal Inch) | 0.8386 |
| Style | H2EC38217 |
