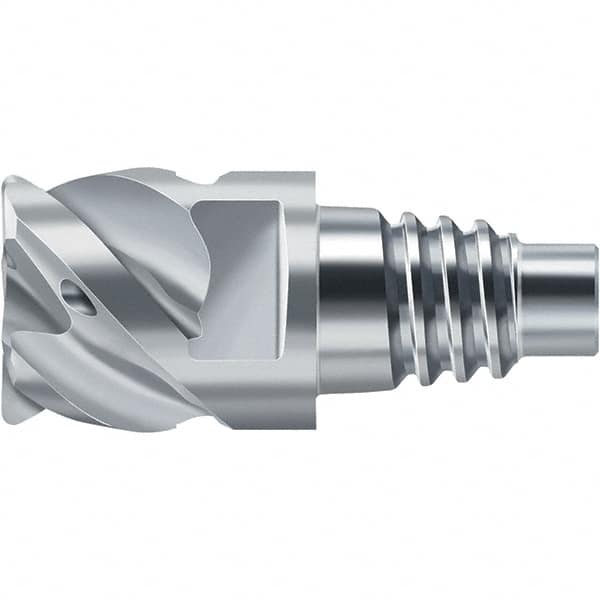

Walter-Prototyp - H2EC Carbide End Milling Tip Insert - TiAlN/TiAl Finish, 5 Flutes, 25mm Cutting Diam, 15mm Depth of Cut, 25.6mm Extension, 0.1575" Cnr Rad
Item #: 53084133
Brand: Walter-Prototyp
Model #: 6335209
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) Titanium Aluminum (TiAl) blends have a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | ConeFit; Protomax Inox |
| Milling Tip Style | H2EC |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Material Grade | A1007 |
| Depth of Cut (mm) | 15.00 |
| Depth of Cut (Decimal Inch) | 0.5906 |
| Number of Flutes | 5 |
| Coating | TiAlN/TiAl |
| Milling Tip Full Description | Corner Radius End Mill |
| Corner Radius (Decimal Inch) | 0.1575 |
| Coating Process | PVD |
| Extension From Holder (mm) | 25.60 |
| Extension From Holder (Decimal Inch) | 1.0079 |
| Style | H2EC38217 |
