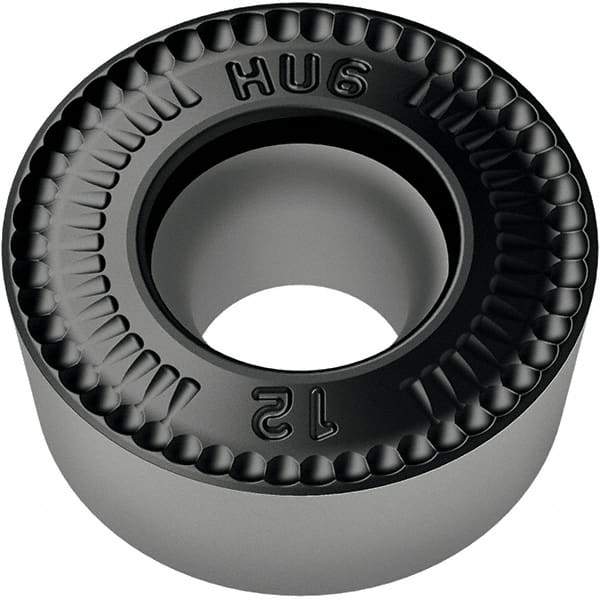

Walter - RCMT1204M0 HU6 Grade WPP30S Carbide Turning Insert - TiCN/Al2O3/TiN Finish, Round, 12mm Inscr Circle, 3/16" Thick
Item #: 53082228
Brand: Walter
Model #: 6438753
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 1204M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Manufacturer's Grade | WPP30S |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P30 |
| Chip Breaker | HU6 |
| ISO Number | RCMT1204M0-HU6 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | RCMT1204M0-HU6 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | None |
| Series | Tiger-tec Silver |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Round |
