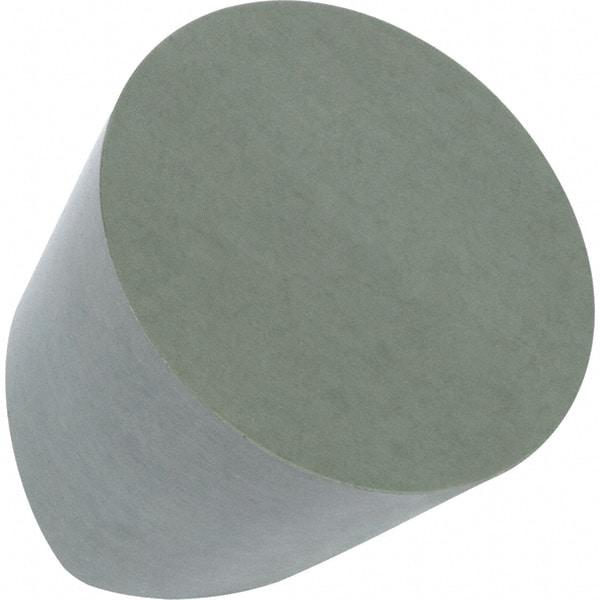

Walter - RCGX090700 Grade WIS10 Ceramic Turning Insert - Uncoated, Round, 3/8" Inscr Circle, 5/16" Thick
Item #: 53070942
Brand: Walter
Model #: 6188163
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 090700 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Manufacturer's Grade | WIS10 |
| Coating | Uncoated |
| Material Grade | S10 |
| ISO Number | RCGX090700E |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | RCGX090700E |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | None |
| Maximum Depth of Cut (mm) | 2.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.0945 |
| Insert Holding Method | Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Round |
