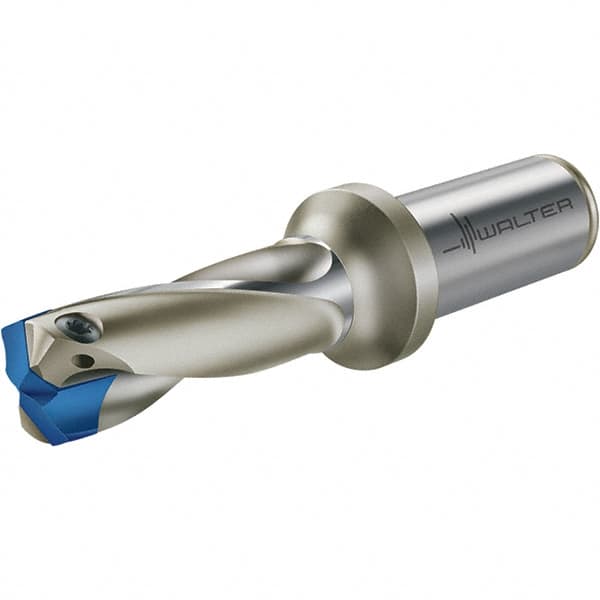

Walter - 0.512" Diam, 3xD, 1.54" Max Depth, 3/4" Shank Diam, 4.87" OAL, Replaceable Tip Drill - P6001-D13..R, P6002-D13..R, P6003-D13..R, P6004-D13..R Insert, B 4013 Toolholder, Series Xtra-tec
Item #: 53067013
Brand: Walter
Model #: 5094651
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Xtra-tec |
| Maximum Drill Diameter (Decimal Inch) | 0.5120 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.5400 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | P6001-D13..R; P6002-D13..R; P6003-D13..R; P6004-D13..R |
| Toolholder Style | B 4013 |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 2.8400 |
| Overall Length (Decimal Inch) | 4.8700 |
| Shank Length (Decimal Inch) | 2.0300 |
