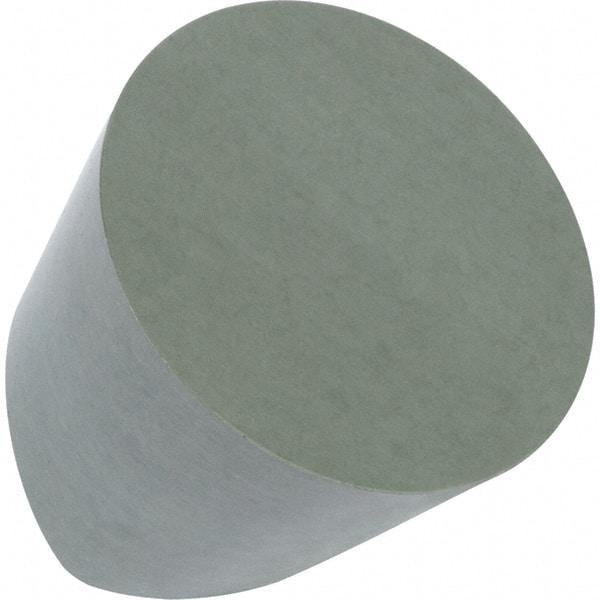

Walter - RCGX060600 Grade WIS10 Ceramic Turning Insert - Uncoated, Round, 1/4" Inscr Circle, 1/4" Thick
Item #: 53066353
Brand: Walter
Model #: 6188135
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 060600 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | WIS10 |
| Coating | Uncoated |
| Material Grade | S10 |
| ISO Number | RCGX060600T01020 |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | RCGX060600T01020 |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | None |
| Maximum Depth of Cut (mm) | 1.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Insert Holding Method | Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Round |
