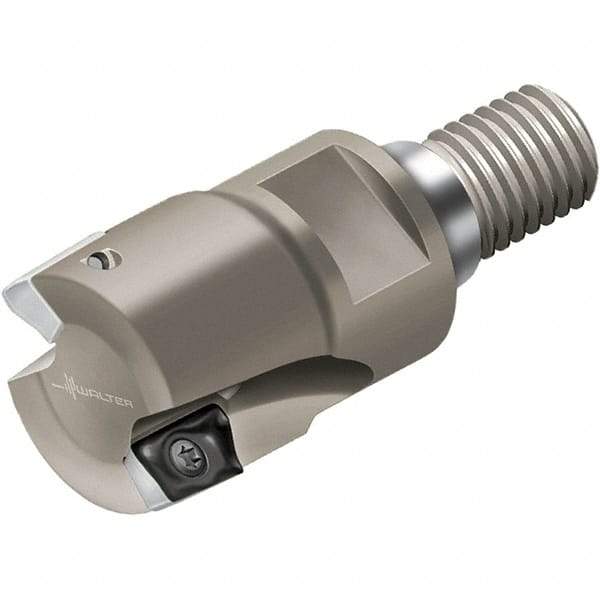

Walter - 16mm Cut Diam, 10mm Max Depth of Cut, Indexable Square Shoulder End Mill - Multiple Insert Styles, T14 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 53057121
Brand: Walter
Model #: 5532006
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Shank Type | Modular Connection |
| Modular Connection Size | T14 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F4042R |
| Number of Flutes | 2 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Insert Compatibility | ADGT 10T316R-D67; ADGT 10T316R-G77; ADGT 10T325R-D67; ADGT 10T325R-G77; ADGT 10T330R-D67; ADGT 10T330R-G77; ADGT 10T332R-D67; ADGT 10T332R-G77; ADGT 10T3PER-D67; ADGT 10T3PER-G77; ADHT 10T3PER-G88; ADKT10T3PER-F56; ADMT 10T308R-F56; ADMT 10T308R-G56; ADMT |
| Shank Length (Decimal Inch) | 0.7087 |
| Shank Length (mm) | 18.00 |
| Maximum RPM | 10000 |
