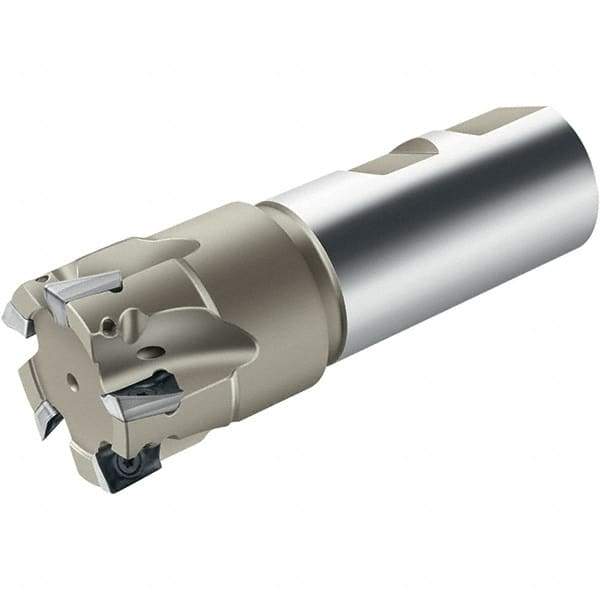

Walter - 20mm Cut Diam, 8mm Max Depth of Cut, 20mm Shank Diam, 90mm OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Through Coolant, Series Xtra-tec
Item #: 53056818
Brand: Walter
Model #: 5402907
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (mm) | 90.00 |
| Overall Length/Projection (Decimal Inch) | 3.5433 |
| Lead Angle | 90 |
| Series | Xtra-tec |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F4042 |
| Number of Flutes | 2 |
| Head Length (mm) | 39.00 |
| Head Length (Decimal Inch) | 1.5354 |
| Weldon Flat | Yes |
| Insert Compatibility | ADGT 0803PER-D51; ADGT 0803PER-D56; ADGT 0803PER-F56; ADHT 0803PER-G88; ADKT0803PER-F56; ADMT 080302R-F56; ADMT 080304R-D56; ADMT 080304R-F56; ADMT 080304R-G56; ADMT 080308R-F56; ADMT 080312R-F56; ADMT 080316R-F56; ADMT 080320R-F56; ADMT 080325R-F56 |
| Shank Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 51.00 |
