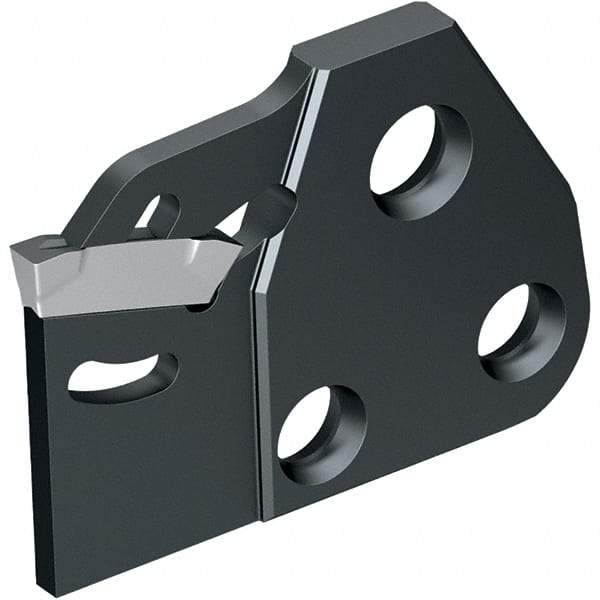

Walter - 0.0571" Blade Width, 1.6142" OAL, Right Hand Cut, Single End Indexable Cut-Off Blade - 15mm Max Depth of Cut, G1332 Blade
Item #: 53054482
Brand: Walter
Model #: 6102124
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Blade Width (mm) | 1.45 |
| Blade Width (Decimal Inch) | 0.0571 |
| Blade Overall Length (mm) | 41.00 |
| Blade Overall Length (Decimal Inch) | 1.6142 |
| Blade Style | G1332 |
| Insert Style | GX16-1E2/F2.. |
| Insert Width (mm) | 2.00 |
| Insert Width (Decimal Inch) | 0.0787 |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutting Height (mm) | 24.00 |
| Cutting Height (Decimal Inch) | 0.9449 |
| Insert Corner Radius (Decimal Inch) | 0.0469 |
| Complete Insert Compatibility | GX16-1E200N020-CF6; GX16-1E200N020-GD3; GX16-1E200N020-UA4; GX16-1E200N020-UF4; GX16-1E200N02-CE4; GX16-1E200N02-CF5; GX16-1E200N02-CF6; GX16-1E200N02-GD3; GX16-1E200N02-GD6; GX16-1E200N02-UD6; GX16-1E200N02-UF4; GX16-1E200N10-RD4; GX16-1E200R/L6-CE4 |
