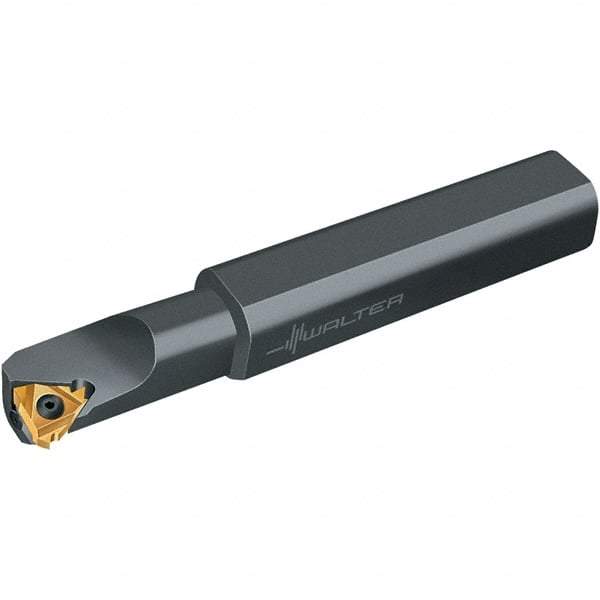

Walter - Internal Thread, Left Hand Cut, 40mm Shank Width x 36mm Shank Height Indexable Threading Toolholder - 300mm OAL, NTSI..-22 Insert Compatibility, S..-NTS-I Toolholder
Item #: 53051918
Brand: Walter
Model #: 5011624
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 36.00 |
| Shank Height (Decimal Inch) | 1.4173 |
| Overall Length (Decimal Inch) | 11.8110 |
| Overall Length (mm) | 300.00 |
| Insert Compatibility | NTSI..-22 |
| Toolholder Style | S..-NTS-I |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 25.80 |
| Center to Cutting Edge (Decimal Inch) | 1.0158 |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3622 |
| Shank Length (Decimal Inch) | 9.4488 |
| Minimum Bore Diameter (Decimal Inch) | 1.8504 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
