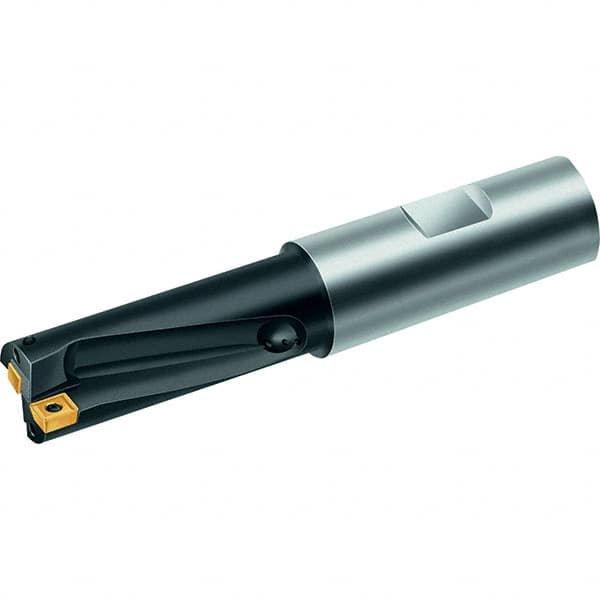

Walter - 0.87" Max Drill Depth, 2xD, 7/16" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Straight Shank
Item #: 53044202
Brand: Walter
Model #: 5027527
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | B3212 |
| Drill Diameter (Inch) | 7/16 |
| Drill Diameter (Decimal Inch) | 0.4375 |
| Maximum Drill Depth (Decimal Inch) | 0.8700 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Insert Size (Decimal Inch) | 0.2050; 0.2600 |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 3.3080 |
| Insert Compatibility | LCMX 050203-B57; LCMX 050203-D57; LCMX 050203-E57; LCMX 06T204-B57; LCMX 06T204-D57; LCMX 06T204-E57 |
| Body Length (Decimal Inch) | 1.3700 |
| Shank Length (Decimal Inch) | 1.9380 |
| Series | Stardrill |
