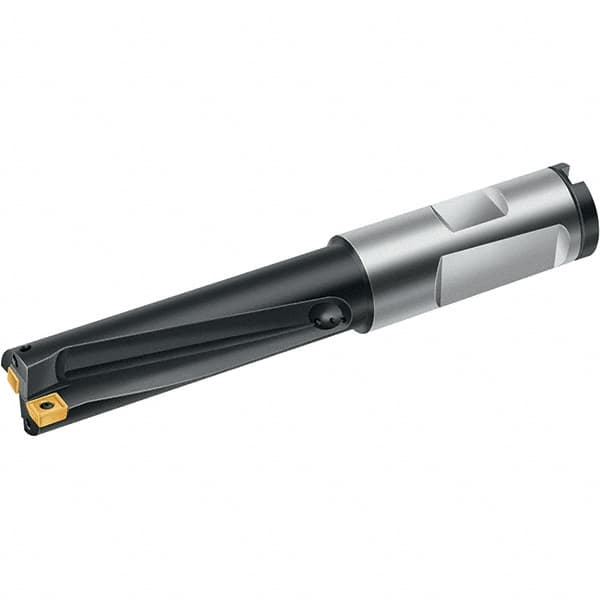

Walter - 51mm Max Drill Depth, 3xD, 17mm Diam, Indexable Insert Drill - 2 Inserts, 16mm Shank Diam, Combination Shank
Item #: 53043832
Brand: Walter
Model #: 5003379
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | B3213 |
| Drill Diameter (mm) | 17.00 |
| Drill Diameter (Decimal Inch) | 0.6693 |
| Maximum Drill Depth (mm) | 51.00 |
| Maximum Drill Depth (Decimal Inch) | 2.0079 |
| Shank Type | Combination |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Insert Size (mm) | 5.20; 6.60 |
| Insert Size (Decimal Inch) | 0.2047; 0.2598 |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 115.00 |
| Overall Length/Projection (Decimal Inch) | 4.5276 |
| Insert Compatibility | LCMX 06T2 |
| Body Length (Decimal Inch) | 2.5984 |
| Body Length (mm) | 66.00 |
| Shank Length (mm) | 49.00 |
| Shank Length (Decimal Inch) | 1.9291 |
| Series | Stardrill |
