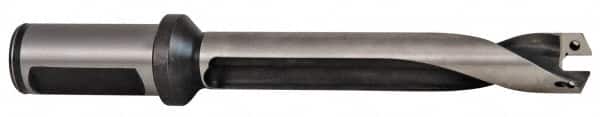

Allied Machine and Engineering - 3.4094" to 1.89" Diam 5xD 2.358" Max Depth Straight Flute Spade Drill
Item #: 70203294
Brand: Allied Machine and Engineering
Model #: 60511S-16FM
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 11 |
| Minimum Drill Diameter (mm) | 86.60 |
| Minimum Drill Diameter (Inch) | 3.4094 |
| Minimum Drill Diameter (Decimal Inch) | 3.4094 |
| Maximum Drill Diameter (mm) | 48.00 |
| Maximum Drill Diameter (Inch) | 1.8900 |
| Maximum Drill Diameter (Decimal Inch) | 1.8900 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Inch) | 0.6300 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 5.2990 |
| Overall Length (mm) | 134.60 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 59.90 |
| Maximum Drill Depth (Inch) | 2.3580 |
| Maximum Drill Depth (Decimal Inch) | 2.3580 |
| Flute Type | Straight Flute |
| Flute Length (mm) | 86.60 |
| Flute Length (Inch) | 3.4094 |
| Flute Length (Decimal Inch) | 3.4094 |
| Body Length (Inch) | 3.4094 |
| Body Length (Decimal Inch) | 3.4094 |
| Body Length (mm) | 86.60 |
| Shank Length (Inch) | 1.8900 |
| Shank Length (Decimal Inch) | 1.8900 |
| Shank Length (mm) | 48.00 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
