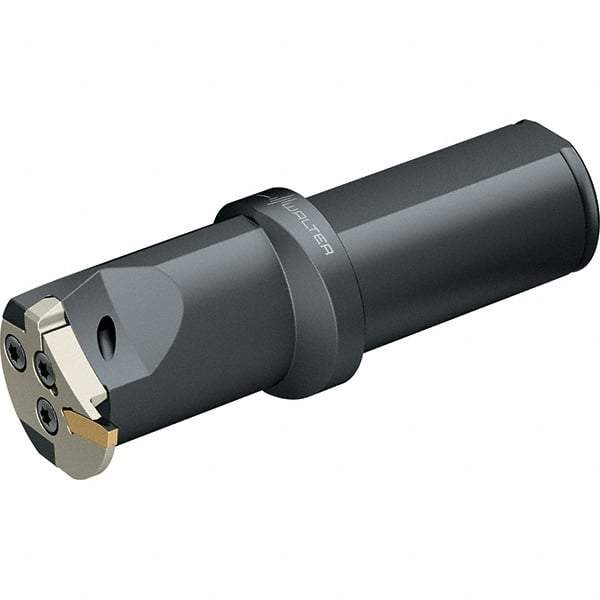

Walter - NCAI, Internal, Left Hand, 10mm Max Depth of Cut, 4 to 5mm Groove Width, Indexable Grooving Tool Holder - GX16-3E.. Insert Compatibility, 40mm Shank Width, 130mm OAL, Through Coolant
Item #: 52999414
Brand: Walter
Model #: 5009462
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Toolholder Style | NCAI |
| Insert Compatibility | GX16-3E.. |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Self Clamp |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Head Height (Decimal Inch) | 1.9685 |
| Head Height (mm) | 50.00 |
| Head Length (mm) | 68.50 |
| Head Length (Decimal Inch) | 2.6969 |
| Full Radius Insert | No |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Complete Insert Compatibility | GX16-3E400N040-GD3; GX16-3E400N040-UA4; GX16-3E400N040-UF4; GX16-3E400N04-GD3; GX16-3E400N04-GD6; GX16-3E400N04-UD6; GX16-3E400N04-UF4; GX16-3E500N040-GD3; GX16-3E500N040-UA4; GX16-3E500N040-UF4; GX16-3E500N04-GD3; GX16-3E500N04-GD6; GX16-3E500N04-UD6 |
