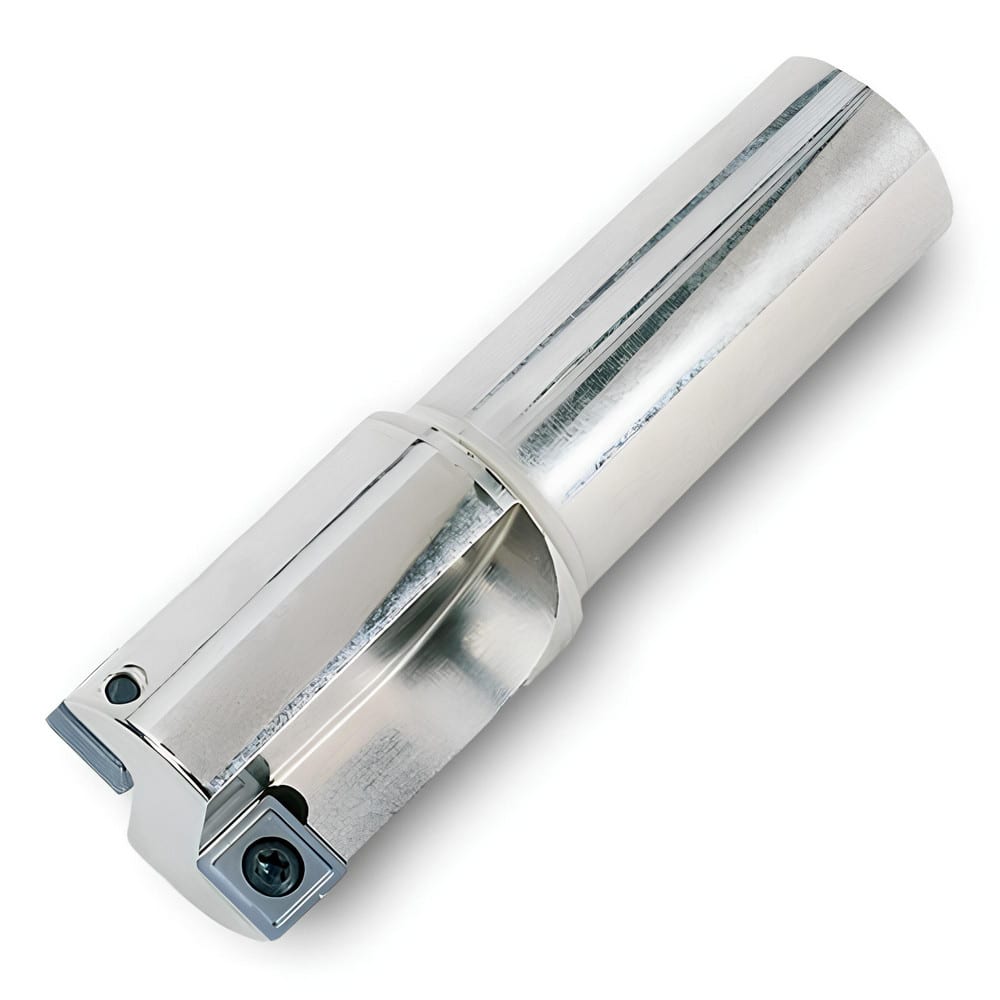

Indexable Counterbores; Counterbore Diameter (Inch): 0.8750 in; Counterbore Diameter (Fractional Inch): 7/8 ; Maximum Counterbore Depth (Decimal Inch): 0.2800 in; Shank Diameter (Inch): 0.7500; Shank Diameter (mm): 0.7500; Shank Diameter (Fractional Inch)
Item #: 52880002
Brand: Ingersoll Cutting Tools
Model #: 3240883
Product Specifications
| Counterbore Diameter (Inch) | 0.8750 in |
| Counterbore Diameter (Fractional Inch) | 7/8 |
| Maximum Counterbore Depth (Decimal Inch) | 0.2800 in |
| Shank Diameter (Inch) | 0.7500 |
| Shank Diameter (mm) | 0.7500 |
| Shank Diameter (Fractional Inch) | 3/4 |
| Number of Counterbore Inserts | 2 |
| Compatible Insert Style | SDLT |
| Compatible Insert Size Code | 07T3 |
| Minimum Pre-machined Hole Diameter | 0.4800 in |
| Overall Length (mm) | 3.38 |
| Overall Length (Decimal Inch) | 3.38 |
| Overall Length (Inch) | 3.38 |
| Number of Flutes | 2 |
| Tool Application | Counterboring |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Screw Type Compatibility | Flat-Head Cap Screw |
| Shank Type | Weldon Flat |
| Series | 15C |
| Through Coolant | None |
| Insert Holding Method | Screw |
| Shank Length (Decimal Inch) | 2.0000 in |
| Shank Length (mm) | 2.0000 in |
