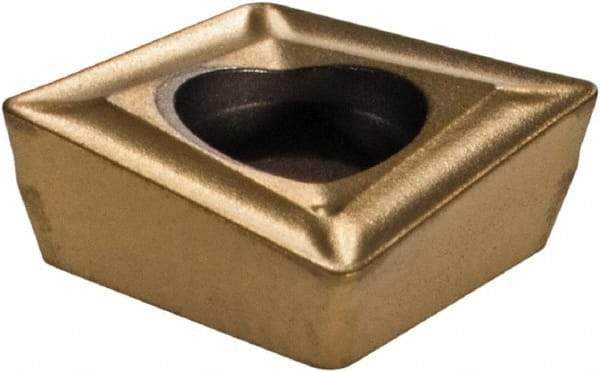

Iscar - XOMT060204 DT Grade IC250 Carbide Indexable Drill Insert - TiCN/TiN Finish, Square, 6.16mm Inscribed Circle
Item #: 52745759
Brand: Iscar
Model #: 5502883
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Insert Style | XOMT |
| Insert Size | 060204 |
| Material | Carbide |
| Manufacturer's Grade | IC250 |
| Inscribed Circle (mm) | 6.16 |
| Inscribed Circle (Decimal Inch) | 0.2425 |
| Thickness (mm) | 2.56 |
| Thickness (Decimal Inch) | 0.1008 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Coating | TiCN/TiN |
| Coating Process | PVD |
| Chipbreaker | DT |
