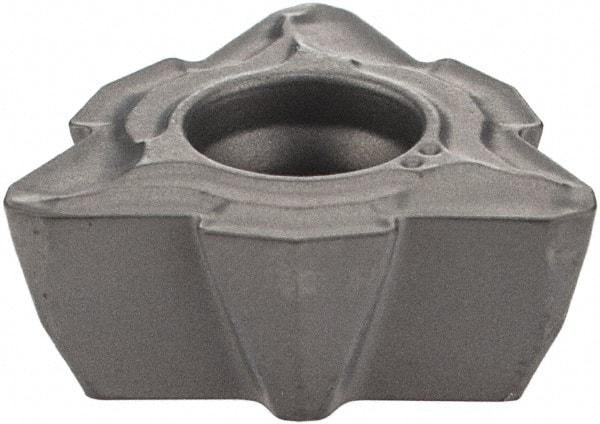

Iscar - WOLH2.5-1 SW Grade IC28 Carbide Indexable Drill Insert - Trigon, 8mm Inscribed Circle
Item #: 52745197
Brand: Iscar
Model #: 5503078
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WOLH |
| Insert Size | 2.5-1 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC28 |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (Decimal Inch) | 0.1500 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Trigon |
| Length (Decimal Inch) | 0.1969 |
| Included Angle | 80 |
| Chipbreaker | SW |
