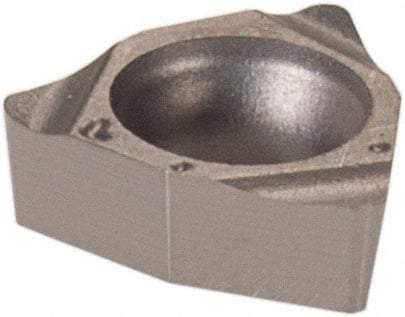

Iscar - WCGT020104 Grade IC30N Carbide Turning Insert - Uncoated, 80° Trigon, 5/32" Inscr Circle, 1/16" Thick, 1/64" Corner Radius
Item #: 52742319
Brand: Iscar
Model #: 5504404
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WCGT |
| Insert Size | 020104 |
| Material | Carbide |
| Length (mm) | 2.18 |
| Length (Decimal Inch) | 0.0858 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0625 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | IC30N |
| Coating | Uncoated |
| Relief Angle | 7 |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Shape | Trigon |
