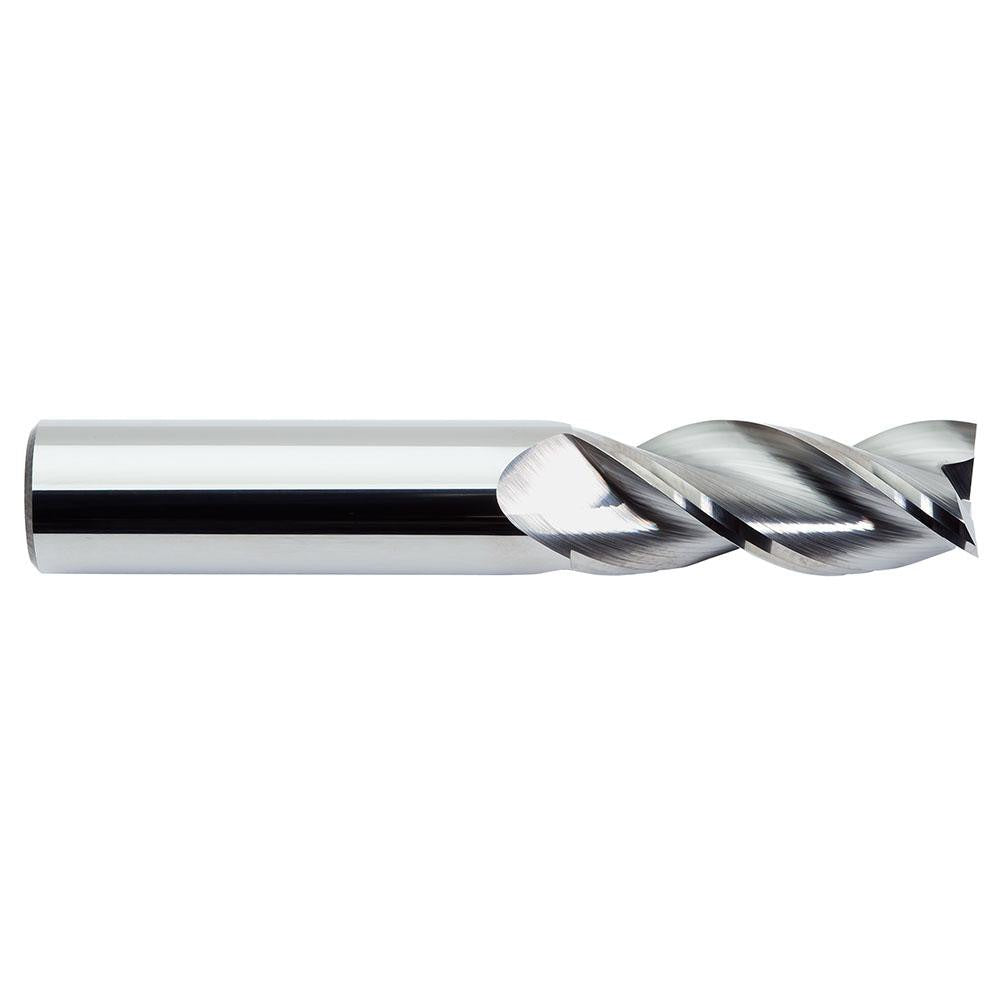

Square End Mill: 6.00 mm Dia, 13.00 mm LOC, 3 Flute, Solid Carbide
Item #: 36880771
Brand: M.A. Ford
Model #: 13823620
Product Specifications
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2362 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.5118 |
| Length of Cut (mm) | 13.00 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 58.00 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 36 |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Primary Workpiece Material Code | N |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Micrograin |
| Length Of Cut Range (Decimal Inch) | 0.5000 - 0.6000 |
| Mill Diameter Tolerance | +0.000/-0.048 mm |
| Shank Diameter Tolerance | h6 |
| Series | 138 |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
