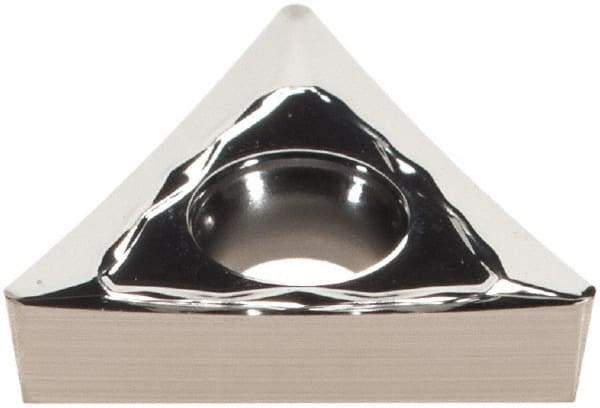

Iscar - TCGT2-1 AS Grade IC20 Carbide Turning Insert - Uncoated, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 52738200
Brand: Iscar
Model #: 5540023
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Insert Size | 2-1 |
| Material | Carbide |
| Length (mm) | 11.00 |
| Length (Decimal Inch) | 0.4330 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Chip Breaker | AS |
| Hole Diameter (mm) | 2.79 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | TCGT 2-1-AS |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | TCGT 2-1-AS |
| Included Angle | 60 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Insert Holding Method | Screw |
| Multi Use Application | Boring |
| MultiUseTool | Yes |
| Shape | Triangle |
