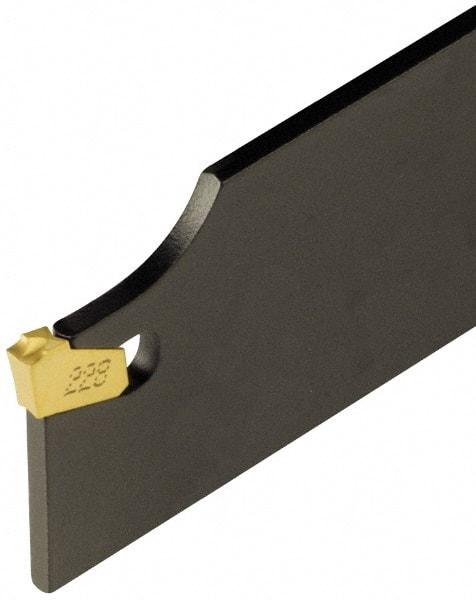

Iscar - 1.7717" Blade Height, 0.0945" Blade Width, 8.8583" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - SGFH Blade, Self Grip Series
Item #: 52733524
Brand: Iscar
Model #: 2301184
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 45.00 |
| Blade Height (Decimal Inch) | 1.7717 |
| Blade Width (mm) | 2.40 |
| Blade Width (Decimal Inch) | 0.0945 |
| Blade Overall Length (mm) | 225.00 |
| Blade Overall Length (Decimal Inch) | 8.8583 |
| Blade Style | SGFH |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1181 |
| Series | Self Grip |
| Insert Seat Size | 3 |
| Tool Block/Toolholder Style | SGTBU |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 6.3000 |
| Cutting Height (mm) | 38.00 |
| Cutting Height (Decimal Inch) | 1.4961 |
| Minimum Insert Width (mm) | 3.00 |
| Minimum Insert Width (Decimal Inch) | 0.1181 |
| Maximum Insert Width (mm) | 3.00 |
| Maximum Insert Width (Decimal Inch) | 0.1181 |
| Manufacturers Catalog Number | SGFH 45-3 |
