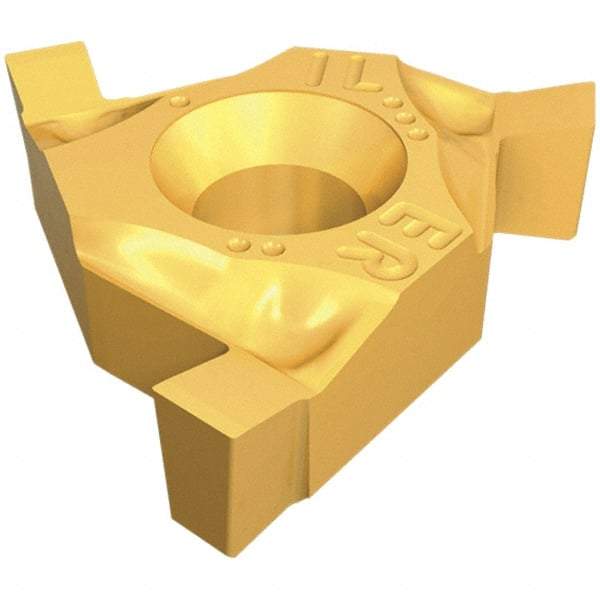

Iscar - 16ER/IL120GTMA Grade IC508, 1.2mm Cutting Width Carbide Grooving Insert - 1.6mm Max Depth of Cut, Left Hand, 0.1mm Corner Radius, TiCN/TiN Finish
Item #: 52718582
Brand: Iscar
Model #: 6402212
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GTMA |
| Insert Size | 16ER/IL120 |
| Material | Carbide |
| Cutting Width (mm) | 1.20 |
| Cutting Width (Decimal Inch) | 0.0472 |
| Maximum Depth of Cut (mm) | 1.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | IC508 |
| Coating | TiCN/TiN |
| Insert Hand | Left Hand |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Coating Process | PVD |
| Series | Cut Grip |
| Overall Width (mm) | 1.20 |
| Overall Width (Decimal Inch) | 0.0472 |
