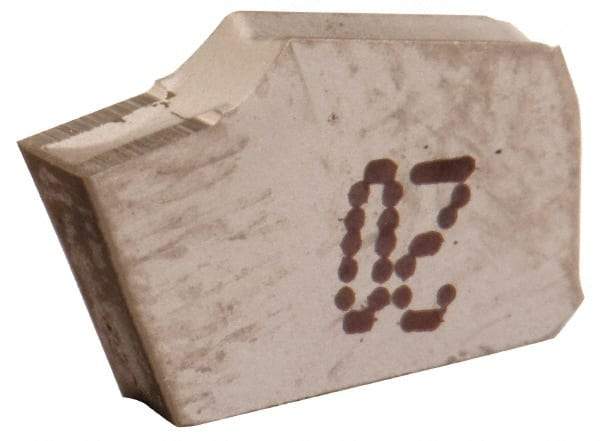

Iscar - GTL315 C IC354 Grade, 0.122" Cutting Width, Carbide Cutoff Insert - 15° Left Hand Lead Angle, 0.0079" Cnr Rad, TiCN Coated, Single End
Item #: 52718418
Brand: Iscar
Model #: 6090026
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GTL |
| Insert Size | 315 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 15 |
| Cutting Width (mm) | 3.10 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC354 |
| Coating | TiCN |
| Relief Angle | 7 |
| Chipbreaker | C |
| Full Radius | No |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Seat Size | 3 |
