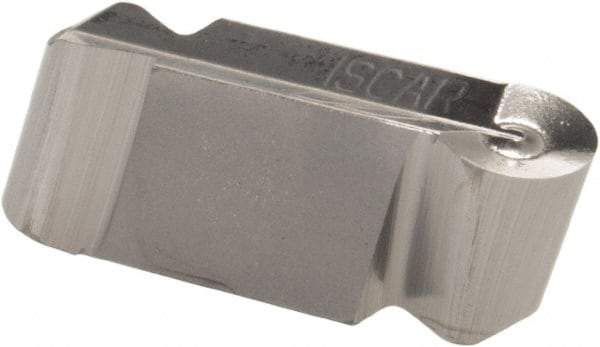

Iscar - 400200GIPA Grade IC20, 3.99mm Cutting Width Carbide Grooving Insert - 2.01mm Max Depth of Cut, Neutral, 2.01mm Corner Radius, Uncoated
Item #: 52716859
Brand: Iscar
Model #: 6402034
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPA |
| Insert Size | 400200 |
| Material | Carbide |
| Cutting Width (mm) | 3.99 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 2.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Grooving; Profiling; Slotting; Turning |
| Corner Radius (mm) | 2.01 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Overall Length (mm) | 14.99 |
| Overall Length (Decimal Inch) | 0.5900 |
| Series | Cut Grip |
| ISO Number | GIPA 4.00-2.00 |
| Manufacturers Catalog Number | GIPA 4.00-2.00 |
