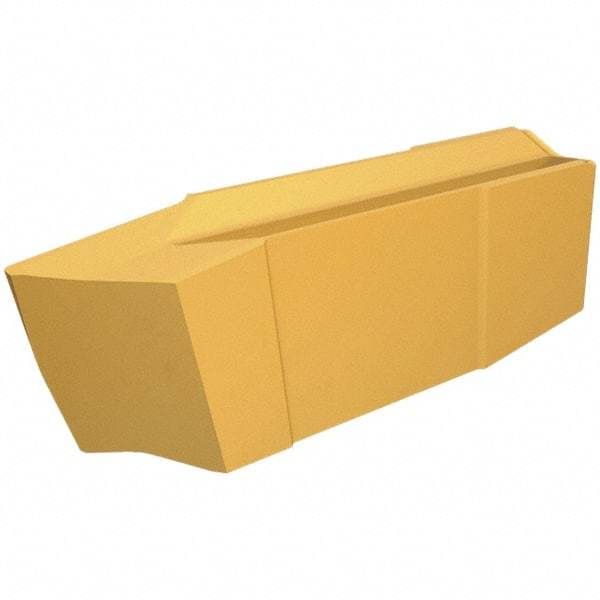

Iscar - 3001250GIP Grade IC20, 0.118" Cutting Width Carbide Grooving Insert - 0.99mm Max Depth of Cut, Left Hand, Uncoated
Item #: 52716164
Brand: Iscar
Model #: 6411105
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIP |
| Insert Size | 3001250 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 0.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Left Hand |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Overall Length (mm) | 15.29 |
| Overall Length (Decimal Inch) | 0.6020 |
| Series | Cut Grip |
| Rake Angle | 6 |
| Rake | Positive |
