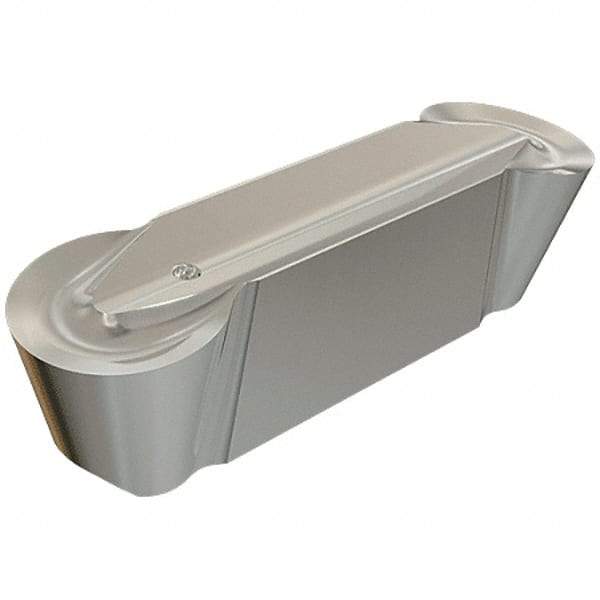

Iscar - 8040GIDA Grade ID5, 8mm Cutting Width Diamond Tipped Grooving Insert - 25mm Max Depth of Cut, Neutral, 4mm Corner Radius
Item #: 52714078
Brand: Iscar
Model #: 6401921
Exact Tooling IR#: 04
Features and Benefits
Diamond tips are one of the hardest cutting materials. It is brazed onto a carbide insert. Commonly used at high cutting speeds on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | GIDA |
| Insert Size | 8040 |
| Material | Diamond Tipped |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Manufacturer's Grade | ID5 |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning; Undercutting |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Series | Cut Grip |
| Overall Width (mm) | 8.00 |
| Overall Width (Decimal Inch) | 0.3150 |
