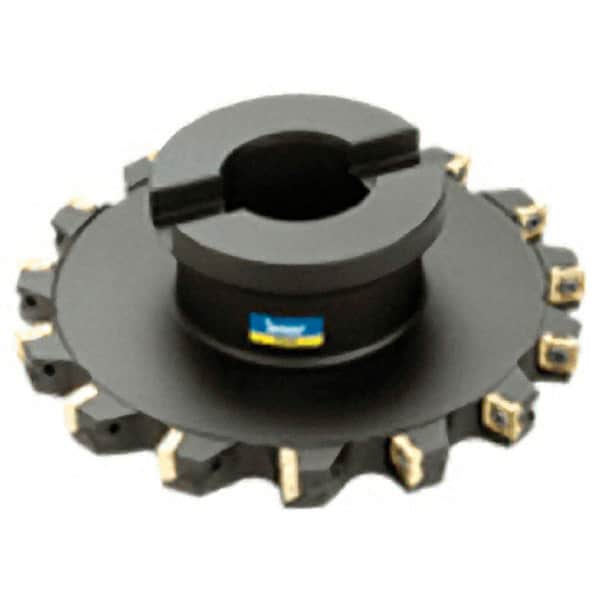

Iscar - Shell Mount B Connection, 0.3543" Cutting Width, 1.3386" Depth of Cut, 125mm Cutter Diam, 1.2598" Hole Diam, 13 Tooth Indexable Slotting Cutter - FST Toolholder, Q/XPMT Insert
Item #: 52708633
Brand: Iscar
Model #: 3100740
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (mm) | 9.00 |
| Cutting Width (Decimal Inch) | 0.3543 |
| Maximum Depth of Cut (mm) | 34.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3386 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 13 |
| Toolholder Style | FST |
| Series | IscarMill(FST) |
| Insert Style | Q/XPMT |
| Staggered Tooth | No |
| Number of Cutter Inserts | 13 |
| Hub Diameter (mm) | 65.00 |
| Hub Diameter (Decimal Inch) | 2.5591 |
