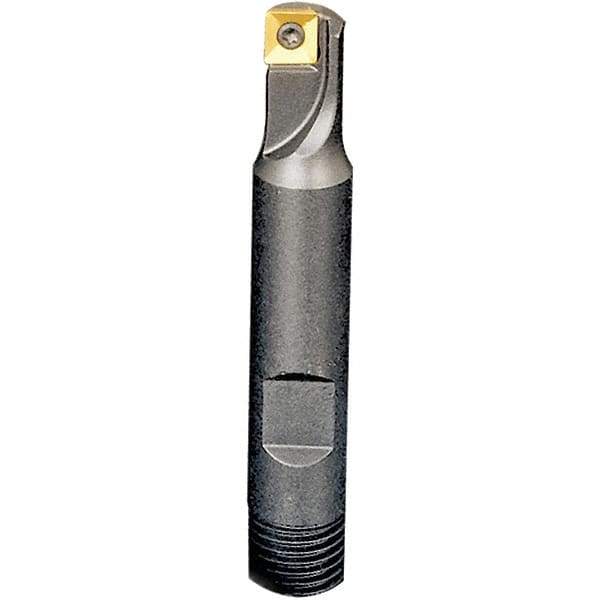

Iscar - 32mm Cut Diam, 5.8mm Max Depth of Cut, 25mm Shank Diam, 90mm OAL, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle, Series Heliquad
Item #: 52708187
Brand: Iscar
Model #: 3110434
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 90.00 |
| Overall Length/Projection (Decimal Inch) | 3.5433 |
| Lead Angle | 90 |
| Series | Heliquad |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 5.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.2283 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 5 |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Weldon Flat | Yes |
| Shank Length (Decimal Inch) | 2.5591 |
| Shank Length (mm) | 65.00 |
