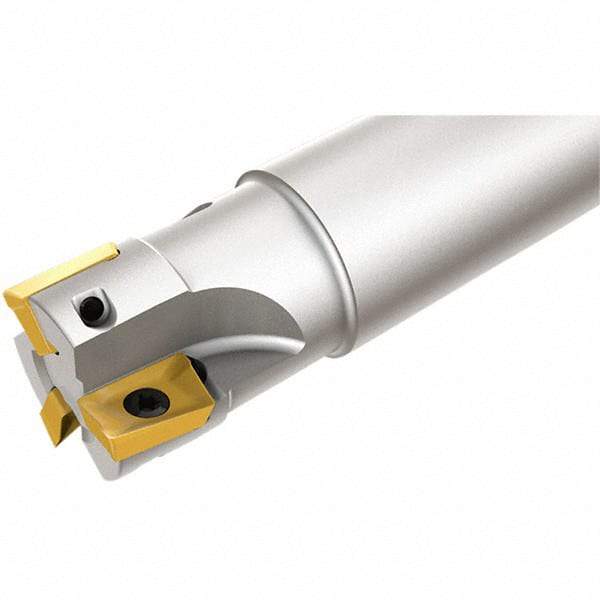

Iscar - 3/4" Cut Diam, 0.56" Max Depth of Cut, 3/4" Shank Diam, 5" OAL, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle, Series Heli2000
Item #: 52707676
Brand: Iscar
Model #: 3102151
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 5.0000 |
| Lead Angle | 90 |
| Series | Heli2000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.5600 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (Decimal Inch) | 1.5000 |
| Weldon Flat | Yes |
